I. product uses:

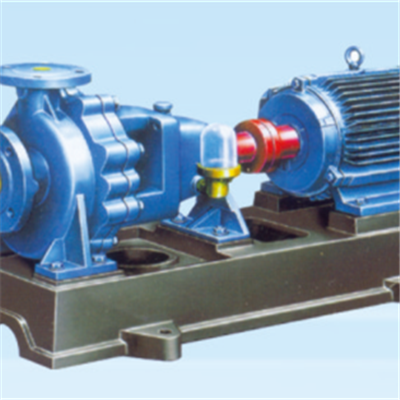

IH chemical pump is single stage single suction cantilever type centrifugal pump. Its marking, rated performance points and dimensions are equivalent to the international standard ISO2858-1975 (E). It is an energy-saving product replacing F corrosion resistant centrifugal pump. It can satisfy the chemical process with corrosive viscosity similar to water.

Pump conveying medium temperature is generally - 20 105 C, if necessary, the use of appropriate cooling measures, conveying medium temperature can be higher.

The maximum working pressure of the pump is designed according to 16bar.

The performance range of this series of pumps (design point): the flow rate is 6.3 to 400 meters 3/, and the lift is 5~125 meters.

The user can choose the material that is suitable for the touch part. In addition to the materials listed above, users are allowed to use other materials that are suitable for the production of this series of pumps. The material and its code should conform to the GB2100-80 standard in principle. Material with no national code can be used by international common material code or domestic recognized material code (such as industry or the provisions of the enterprise).

IH type chemical pump is widely used in many areas, such as chemical, metallurgical, electric power, paper, food, pharmaceutical, synthetic fiber and other industrial sectors to transport corrosive or non-solid liquid particles.

Two. Range of performance:

Inlet diameter: 50-200mm

Traffic: 5.7-400m3/h

Lift: 5-125m

Rotate speed: 2900r/min and 1450r/min

Power consumption: 0.55-132Kw
