First, an overview

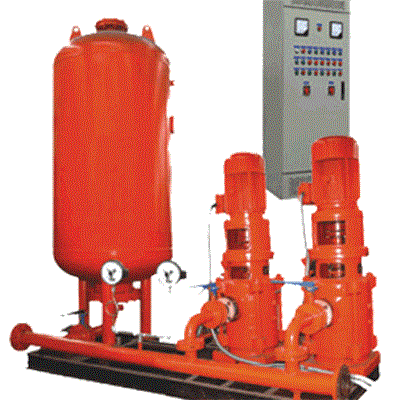

XF series fire fighting pneumatic water supply equipment is a new type of fire fighting fixed fire extinguishing equipment designed according to relevant national and industrial standards.

XF series fire and pressure water supply equipment is widely applicable to fire water supply system. It can start fire pump in parallel with fire signal, replace fire water tank in part, connect with fire control center according to user"s requirement, start-up mode of fire main pump can be replaced by soft start-up device according to user"s requirement, start-up mode of double power supply and automatic switch-over of double power supply. And other functions to meet the design requirements of fire fighting system.

Two. Characteristics

Because the XF type fire fighting pneumatic water supply equipment adopts the independent internal circulation air supply system and the independent liquid level display water supply system, and adopts the (PLC) programmable control technology in the control system, (SSD) fire fighting main pump timing soft start technology, so the equipment has the following characteristics:

1. Effective control of the gas-water ratio in the tank to ensure that according to the fire code (30 seconds) to start the pump or (10 seconds) water supply design of the effective water volume;

2, without the limitation of the height of the pool, it can automatically make up the gas and ensure the design pressure of the system.

3, multi-function programming control, fire pump timing soft start inspection;

4. It can be networked with computer network management.

5. A variety of fire signals can be accepted and can be linked with fire control centers.

6. It can be designed with dual power supply to meet the requirements of fire prevention code.

7, simple structure, safe and reliable.
